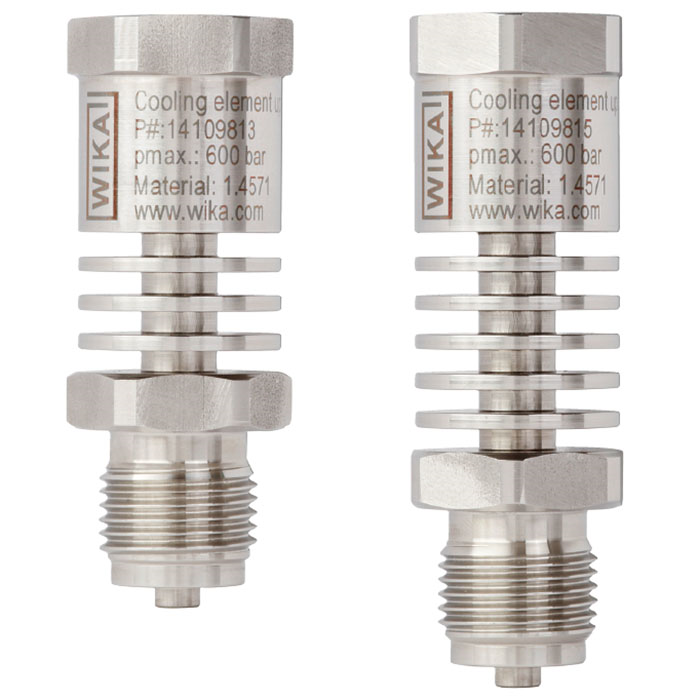

Model 910.32

Cooling element for pressure measuring instruments

For threaded attachment

Selected documents
Комерційний контакт Запитання? Знайдіть контакт поблизу.

Applications

  • For screwing onto pressure measuring instruments at increased medium temperatures

Special Features

  • For medium temperatures up to 200 °C
  • Can work with pressures up to 600 bar
  • Connections for G ½ B (EN 837)

Description

Cooling elements are used when the medium temperature would exceed the permissible temperature limit of the pressure measuring instrument.

Through air circulation and heat radiation at the cooling element, the medium temperature is lowered sufficiently so that the temperature limits are not exceeded and any possible temperature error is reduced.

The cooling element can also be used for warming very cold media, provided that the ambient temperature is higher than that of the media.

Cooling element for pressure measuring instruments
  • Cooling element for pressure measuring instruments
