Compact version, NS 40, 50 and 63
Case and wetted parts from stainless steel
Version per EN 837-1 or ASME B40.100
Cost-effective and reliable
Scale ranges from 0 ... 1 to 0 … 1,000 bar [0 ... 15 to 0 ... 15,000 psi]

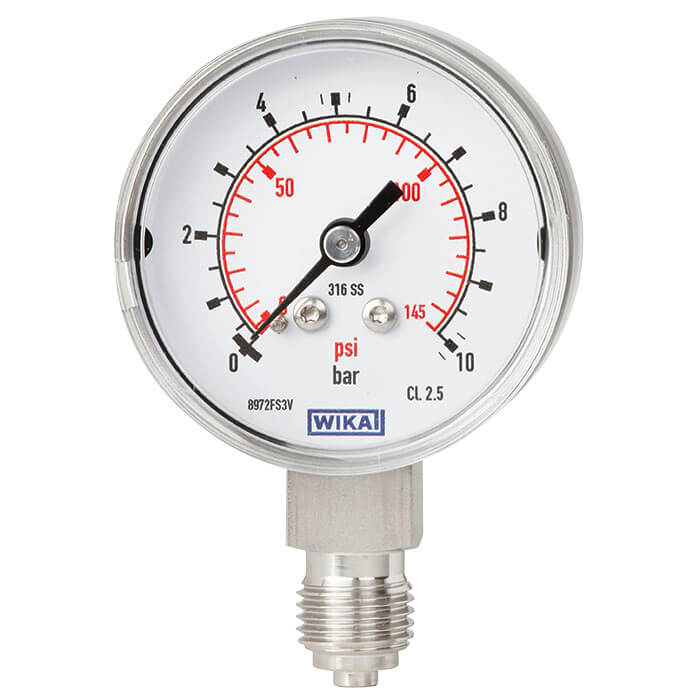

The compact model 131.11 Bourdon tube pressure gauge is constructed with a case and wetted parts from stainless steel.
The modular design enables a multitude of combinations of process connections, nominal sizes and scale ranges. Due to this high variance, the instrument is suitable for use in a wide range of applications within industry.
The instrument is frequently used as a failure alarm indicator on gas cylinders. With its compact design and moderate purchase costs, the pressure gauge also qualifies for machine-building and plant-construction applications.
Due to the use of high-quality stainless steel materials and its robust design, the instrument is suitable for liquid and gaseous media, also in aggressive environments.
For mounting in control panels, the pressure gauges can be fitted with a surface mounting flange or with a triangular profile ring and mounting bracket.
Model 910.17
For measuring instruments and instrumentation accessories
Model 910.11
brass, steel or stainless steel
Model 910.13
Brass or stainless steel
Model 910.12
Brass, steel or stainless steel
Model 910.14
For pressure measuring instruments
