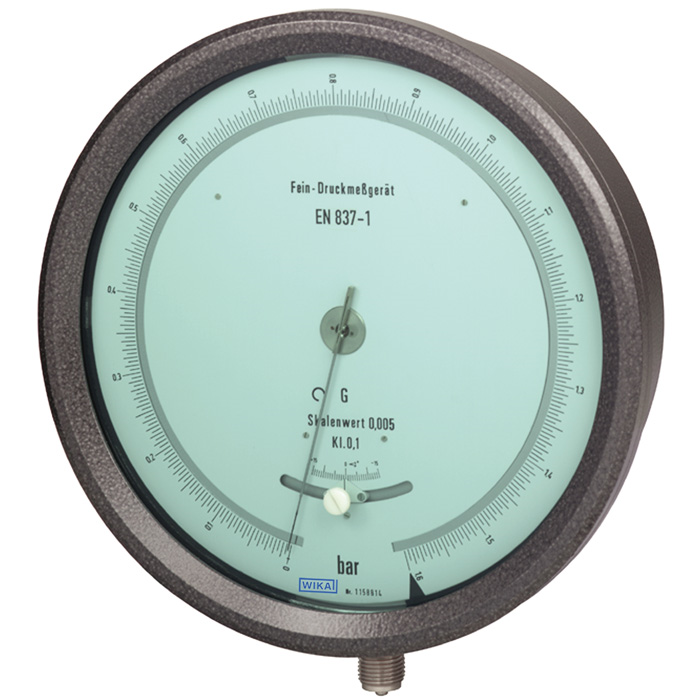

From class 0.1, NS 250, with transport case and acceptance test certificate
Designper EN 837-1, including transport case and acceptance test certificate (individual listing of the calibration points)
Nominal size in mm250
Accuracy class0.1: for scale ranges < 0 ... 400 bar0.25: for scale ranges ≥ 0 ... 400 bar
Scale ranges0 ... 1.0 to 0 ... 1,600 baror all other equivalent vacuum or combined pressure and vacuum ranges
Adjustment medium≤ 25 bar: Gas> 25 bar: Water
Pressure limitationSteady: Full scale valueFluctuating: 0.9 x full scale value
Permissible temperatureAmbient: -20 … +60 °CMedium: +100 °C maximum
Temperature effectWhen the temperature of the measuring system deviates from the reference temperature (+20 °C):Max. ±0.1 %/10 K of full scale value
Ingress protectionIP54 per IEC/EN 60529
Model 910.14
For pressure measuring instruments
Model 910.17
For measuring instruments and instrumentation accessories
