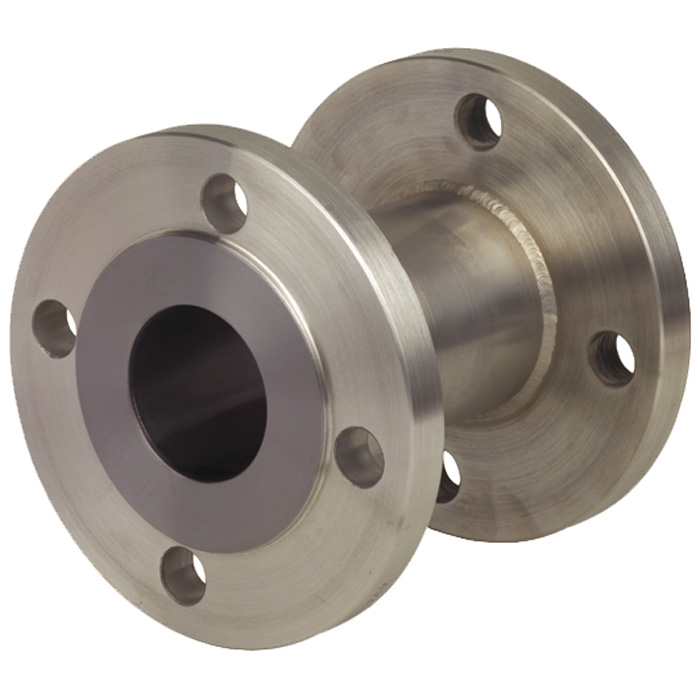

For flange connection, flange-type
Desciption
Process connectionfor flanges following EN 1092-1 / ASME B 16.5DN 25, 40, 50, 80, 100 or 1", 2", 3", 4"Nominal size: see drawing and tables (DN)Sealing face, Form B1 or ASME RF 125 ... 250 AA
Pressure ratingPN 16/40 or Class 150/300
Pressure rangespreferably mounted to pressure gauges NS 63, 100, 160 or pressure transmitters, Pressure ranges 0 ... 0.6 to 0 ... 40 bar
Body and material of wetted partsStainless steel (AISI 316L)
Measuring instrument connectionPressure gauge or transmitter directly welded, process pressure transmitter with threaded adapter
Process connection
Material of wetted parts
Measuring instrument connection
Capillary
Model 910.16
Model 910.17
For measuring instruments and instrumentation accessories
Model 910.21
For mounting to zone 0 (EPL Ga)
Model 990.26
With internal diaphragm
Model 981.10
For flange connection, cell-type
Model 990.28
Cell-Type (Sandwich) Seals
Model 990.15
For block flange or saddle flange
Model 990.27
With flush diaphragm
