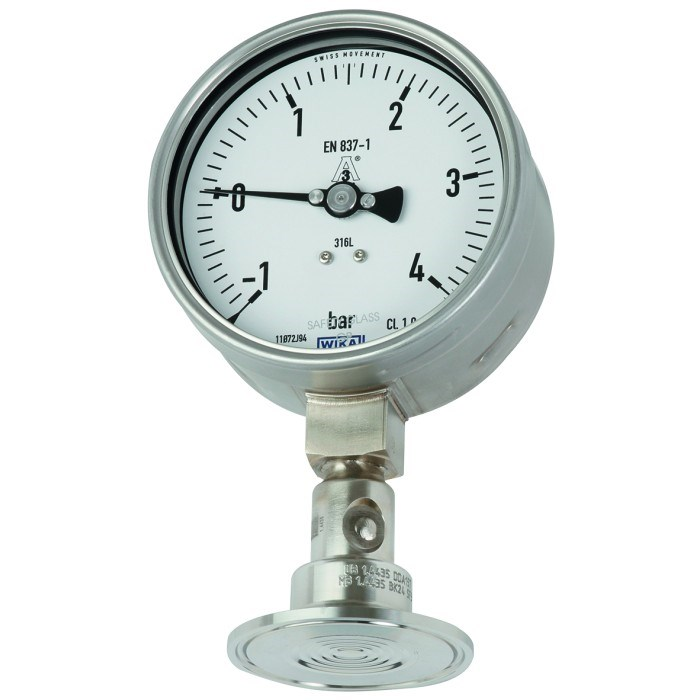

With clamp connection
Diaphragm seal systems are used to protect the pressure measuring instrument from aggressive, adhesive, crystallising, corrosive, highly viscous, environmentally hazardous or toxic media. The diaphragm made of stainless steel provides for the separation from the medium. The pressure is transmitted to the measuring instrument via the system fill fluid which is inside the Diaphragm seal system.
The DSS22F complies with all requirements of the food industry. The particular suitability for foodstuffs rests on the fact that the measuring point can be cleaned while installed.
The requirements of CIP (cleaning in place) and SIP (sterilisation in place) are fulfilled.
The clamp connection enables the quick and easy dismounting and thus a simple cleaning with seal replacement.
The proven, all-welded construction ensures a long service life and permanent sealing.
Model 910.33
For NS 63, 100 and 160 pressure gauges and dial thermometers
Model DSS22T
Model DSS22P
