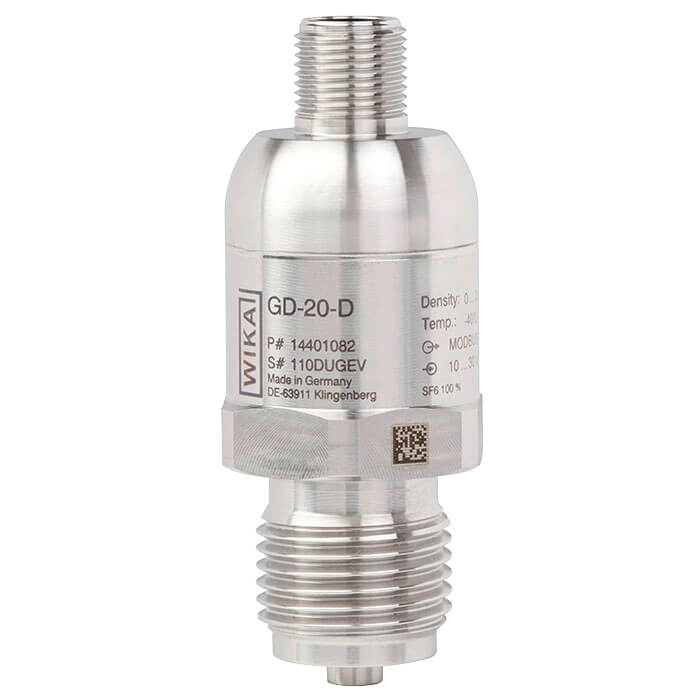

For gas density, temperature and pressure of insulating gases, with Modbus® or analogue 4 ... 20 mA signal
Permanent monitoringIn order to prevent system failures in switchgear and network outages, the permanent monitoring of the gas density is essential.
The model GD-20 calculates the current gas density from the pressure and temperature using a complex virial equation in the gas density sensor´s powerful microprocessor. Pressure changes resulting from thermal effects will be compensated by this and will not affect the output value.
MODBUS® fieldbusThe RS-485 interface communicates using the MODBUS® RTU protocol. The instrument's output parameters and their units can be configured and read according to requirements.The GD-20 model can be freely configured at the factory for any defined gas mixture consisting of SF6, N2, CF4, O2, CO2, 3M™ Novec™ 4710, He and Ar.
The calculation is based on the partial pressure method of the individual gas components.
Signal stabilityDue to its high long-term stability, the sensor is maintenance-free and requires no recalibration. Due to the hermetically sealed weld seam and a measuring cell design without sealing elements, the permanent sealing of the measuring cell is ensured.
The gas density sensor is also available with analogue output signal (4 … 20 mA) for output of the compensated pressure (p at 20 °C [68 °F]).
