Nominal pressure of 15,000 ... 60,000 psi [1,034 ... 4,136 bar]
The model HPFA high-pressure fittings and accessories have been developed for high-pressure applications of 15,000 ... 60,000 psi [1,034 ... 4,136 bar]. These are particularly suitable for control panels, where the space is restricted, or for test benches.

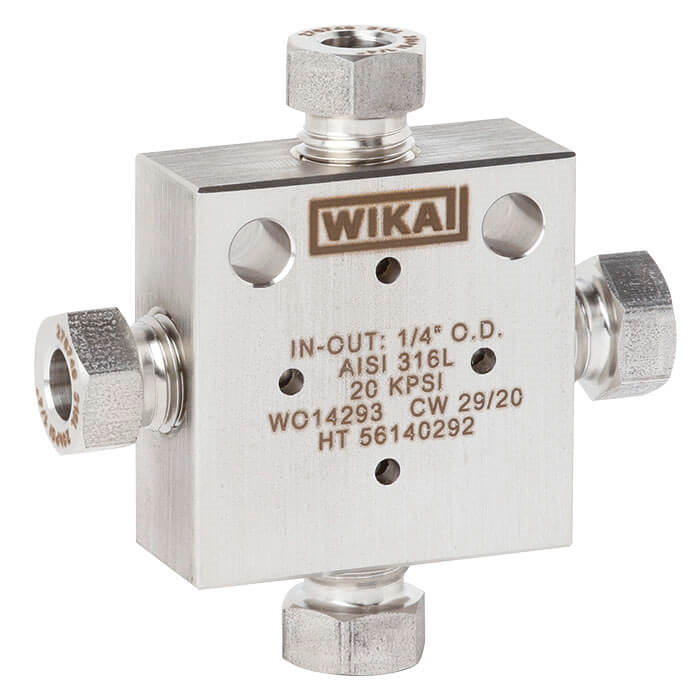

The range of model HPFA includes elbow fittings, T-fittings, cross fittings, bulkhead connectors, gland collars, glands, anti-vibration glands and nipples.
The elbow fittings, T-fittings and cross fittings are provided with mounting holes. The connection type of cone/thread fitting is already fitted with gland collars and glands.
The design and the use of high-quality materials ensure long operating times and high leak tightness.
On request, WIKA offers the professional assembly of valves and pressure measuring instruments and also other accessories into a ready-to-install instrument hook-up. To ensure the functionality of the complete system, an additional leak test is carried out on the instrument hook-up.
Model HPNV
Model 910.14
For pressure measuring instruments
