Model BZG

External chamber

For level measurement with inserted sensors

Selected documents
Комерційний контакт Запитання? Знайдіть контакт поблизу.

Applications

    • Level detection for almost all liquid media
    • Individual design and corrosion-resistant materials make the products suitable for a broad range of applications
    • Chemical industry, petrochemical industry, oil and natural gas extraction (on- and offshore), shipbuilding, machine building, power generating equipment, power plants

Special features

    • Process- and procedure-specific production
    • Operating limits:
      - Operating temperature: T = -196 ... +450 °C
      - Operating pressure: P = Vacuum up to 400 bar
    • Wide variety of different process connections and materials
    • Mounting of level sensors and guided wave radars possible as an option

Description

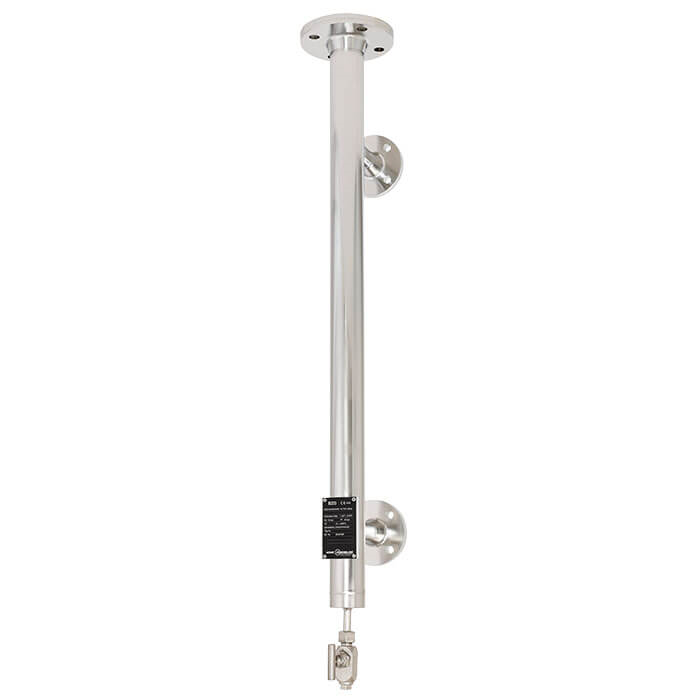

The external chamber model BZG consists of an external chamber vessel that is mounted laterally to a vessel using at least 2 process connections (flange, thread or weld stub). Through this type of arrangement, the level in the external chamber corresponds to the level in the vessel.

The level is measured by a measuring instrument inserted additionally in the external chamber, for example model FLR or FLS, or by a guided wave radar.

External chamber
  • External chamber
