For the process industry
These high-quality diaphragm pressure switches have been developed especially for safety-critical applications. The great advantage of diaphragm pressure switches is that no supply voltage is required for the switching process.
In production, the diaphragm pressure switches are traced by quality assurance software at every step and subsequently are 100 % tested. The robust switch enclosure from stainless steel 316L can withstand the rough and corrosive operating conditions of the process industry with working ranges of up to 600 bar.The diaphragm pressure switch is fitted with 1 or 2 microswitches, which make it possible to switch an electrical load of up to AC 250 V, 20 A directly.
For lower switching power ratings, such as for PLC applications, argon gas-filled microswitches with gold-plated contacts are available.
Depending on the application, the appropriate variant for the contact version and the electrical connection can be selected; e.g. adjustable dead band instead of fixed dead band is often a feature necessary for control processes.

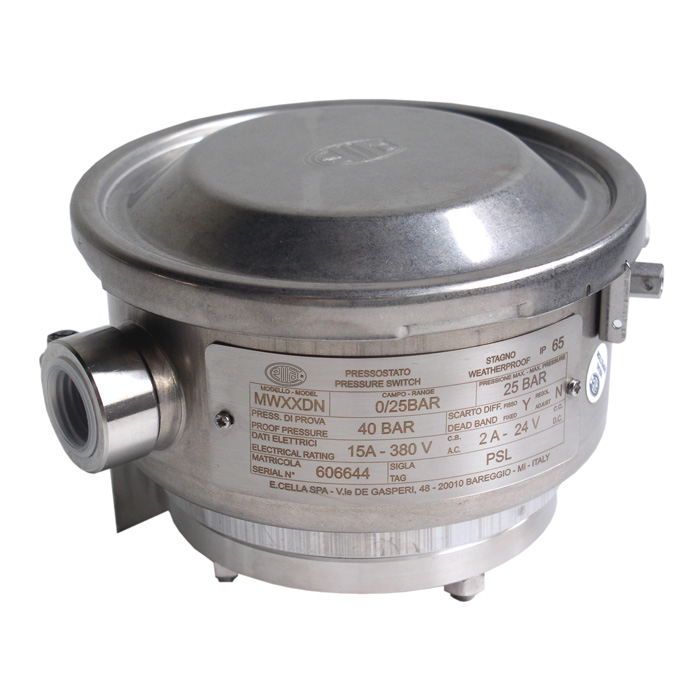

By using a diaphragm measuring system, the model MW pressure switch is extremely robust and guarantees optimal operating characteristics. Flanged process connections are excellently suited for measuring highly viscous, contaminated or crystallising media.
For applications with special requirements on the wetted parts, versions with materials from PTFE, Monel or Hastelloy are available.
For safety applications, the diaphragm pressure switch is optionally available in a SIL 2-qualified or a SIL 3-qualified version.
Model IVM
Process and instrument version
Model 910.15
For pressure measuring instruments
Model 910.12
Brass, steel or stainless steel
Model 910.11
brass, steel or stainless steel
Model 910.17
For measuring instruments and instrumentation accessories
Model 910.14
Model 910.13
Brass or stainless steel
Model PXA
Model PCA
Model BWX
Stainless steel version
Model MA
Model PXS
Model MW
